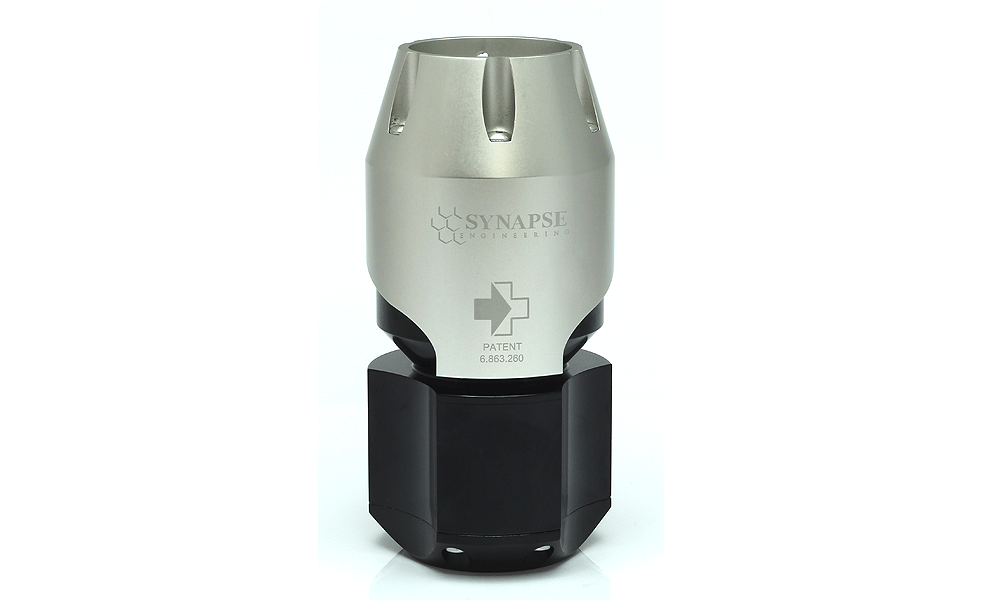

Synapse Engineering Synchronic Blow Off Valve — Universal

Description

Universal Synchronic BOV package – SB001A is the iconic Synchronic
BOV that has set the standard for impossibly fast response from a BOV/DV.
Completely modular, it can be installed as a vent-to-atmosphere BOV or
re-circulating diverter valve. This universal package can be outfitted to
most any application utilizing our interchangeable mounting flange system.

By design, it is a pull-type valve only. This means that boost pressure keeps
it closed, meaning no boost leaks upwards of 100+ psi of boost. It operates
in a normally open condition. This means that it is designed to remain open
under vacuum conditions. For maximum performance and reliability, it is
recommended to install the Synchronic BOV in a re-circulated configuration
with the discharge between the MAF sensor and turbocharger inlet.

Common Applications:
• Universal

Kit Contents Include:
• Synchronic BOV SB001A Black Body/Silver Cover
• SB001.2A 304SS weld flange package
• 1/8th npt brass air fittings
• 1.25” Silver Aluminum recirculation fitting
• Adjustment Allen Key

Overview
Inches: 9″ x 4″ x 4″ Cm: 22.86 x 10.16 x 10.16
Description
Universal Synchronic Blow-Off Valve with weld on steel flange silver cover/black body
