CSF R32 Skyline GT-R / GTS Full Billet Aluminum High-Performance Radiator CSF #7217 / #7217B
$995.00

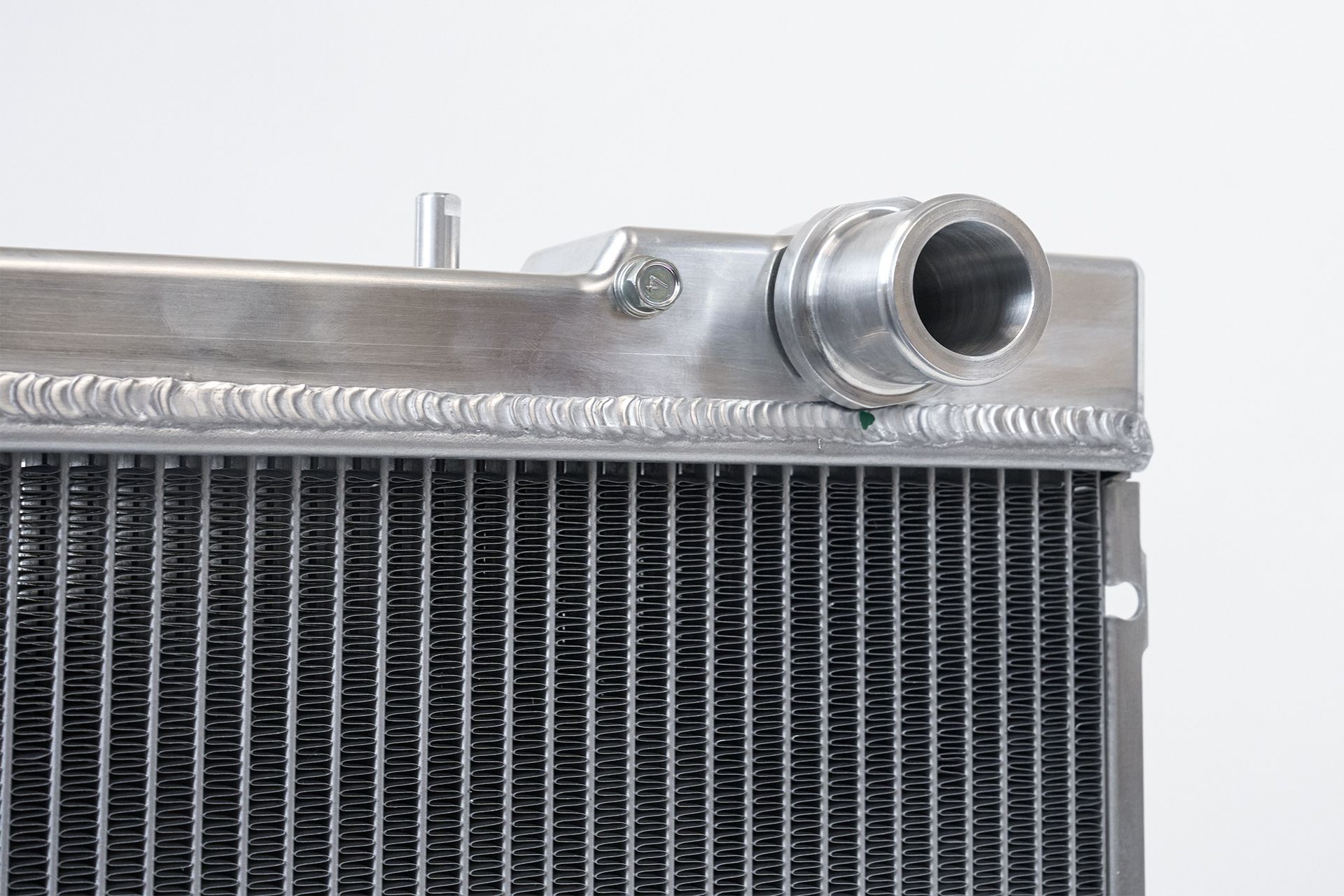

CNC Machined 100% Billet Aluminum End Tanks

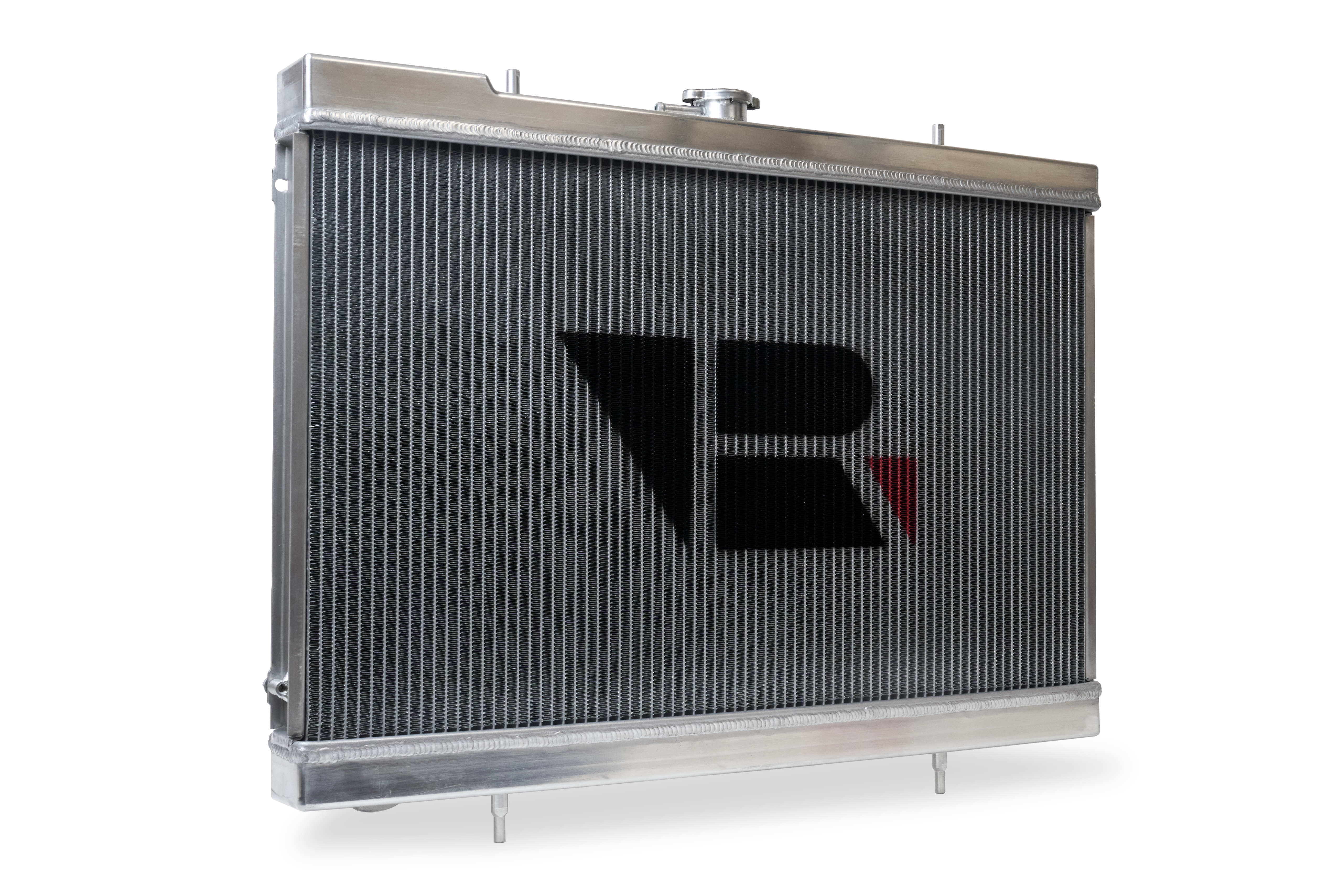

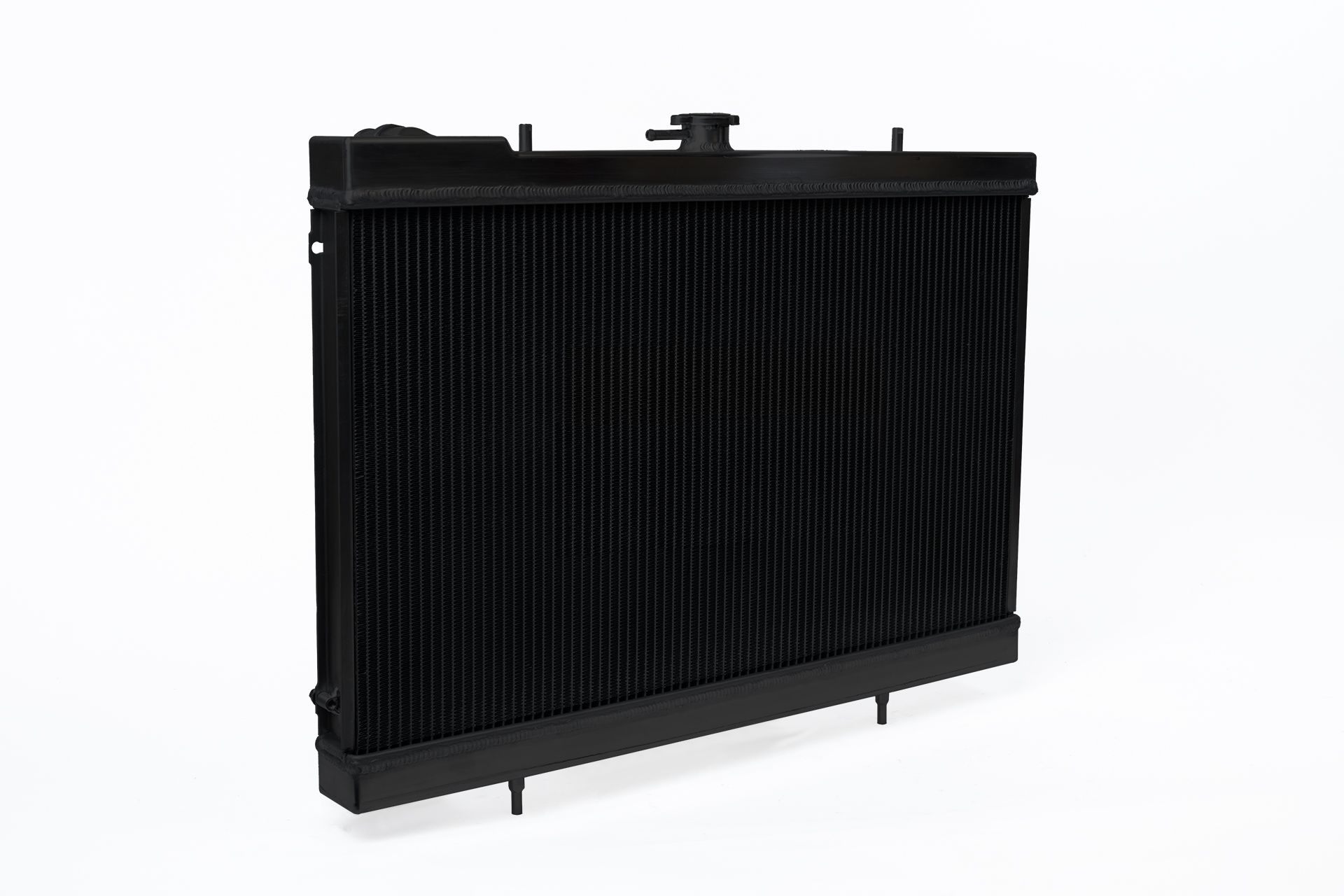

Raw Billet Aluminum Finish (#7217) or Satin Black Finish (#7217B)
2-Row – 42mm Ultra-High-Performance Core
75 Cooling Tubes with CSF’s Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Pins and OEM Style Inlet/Outlet
TO SEE MORE INFO SEE BELOW FOR FULL DESCRIPTION. AVAILABLE IN ALUMINUM FINISH OR SATIN BLACK. PLEASE SPECIFY WHICH FINISH YOU WANT IN ORDER NOTES.
Description
CNC Machined 100% Billet Aluminum End Tanks
Raw Billet Aluminum Finish (#7217) or Satin Black Finish (#7217B)
2-Row – 42mm Ultra-High-Performance Core
75 Cooling Tubes with CSF’s Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Pins and OEM Style Inlet/Outlet
1/8th NPT Temp Sensor Port on Top End Tank
Top Rank Logo machined into Top End Tank and Painted on Core
100% All Aluminum TIG-Welded Construction
1.4 Bar High Pressure Radiator Cap with CSF embossed logo
True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
Individually Leak and Pressure Tested
OE Location Fan Shroud Mounting Points
2-Year Limited Warranty
Limited Production
Applications:
1989-1994 Nissan R32 Skyline GT-R (incl. V-Spec & V-Spec II)
1989-1993 Nissan R32 Skyline GTS / GTS-t / GTS-4 / GTS-25
1989-1993 Nissan R32 Skyline GTE
1989-1993 Nissan R32 Skyline GXi
1991-1993 Nissan Skyline R32 Autech Version (201 Produced)
1990 Nissan Skyline GT-R Nismo (560 Produced)
OEM Part Number:
Nissan: 21410-04U01
Additional information
| Weight | 16 lbs |
|---|---|
| Dimensions | 35 × 6 × 28 in |
