CST Titan 4″ lift for 2wd Titan

Description

OUR 4″ FABRICATED LIFT SPINDLES FOR THE 2004-2012 NISSAN TITAN 2WD PICK-UP WILL INCREASE GROUND CLEARANCE, ALLOW YOU TO FIT A 305 or 33″ TIRE & KEEP THE FACTORY RIDE. IF YOU WOULD PREFER TO HAVE THE BACK JUST A LITTLE BIT TALLER, WE DO OFFER A 1″ REAR BLOCK AND U-BOLT KIT.

CST PERFORMANCE SHOCKS ARE AVAILABLE FOR THE REAR OF THE TRUCK FOR USE WITH OR WITHOUT THE REAR BLOCKS INSTALLED.

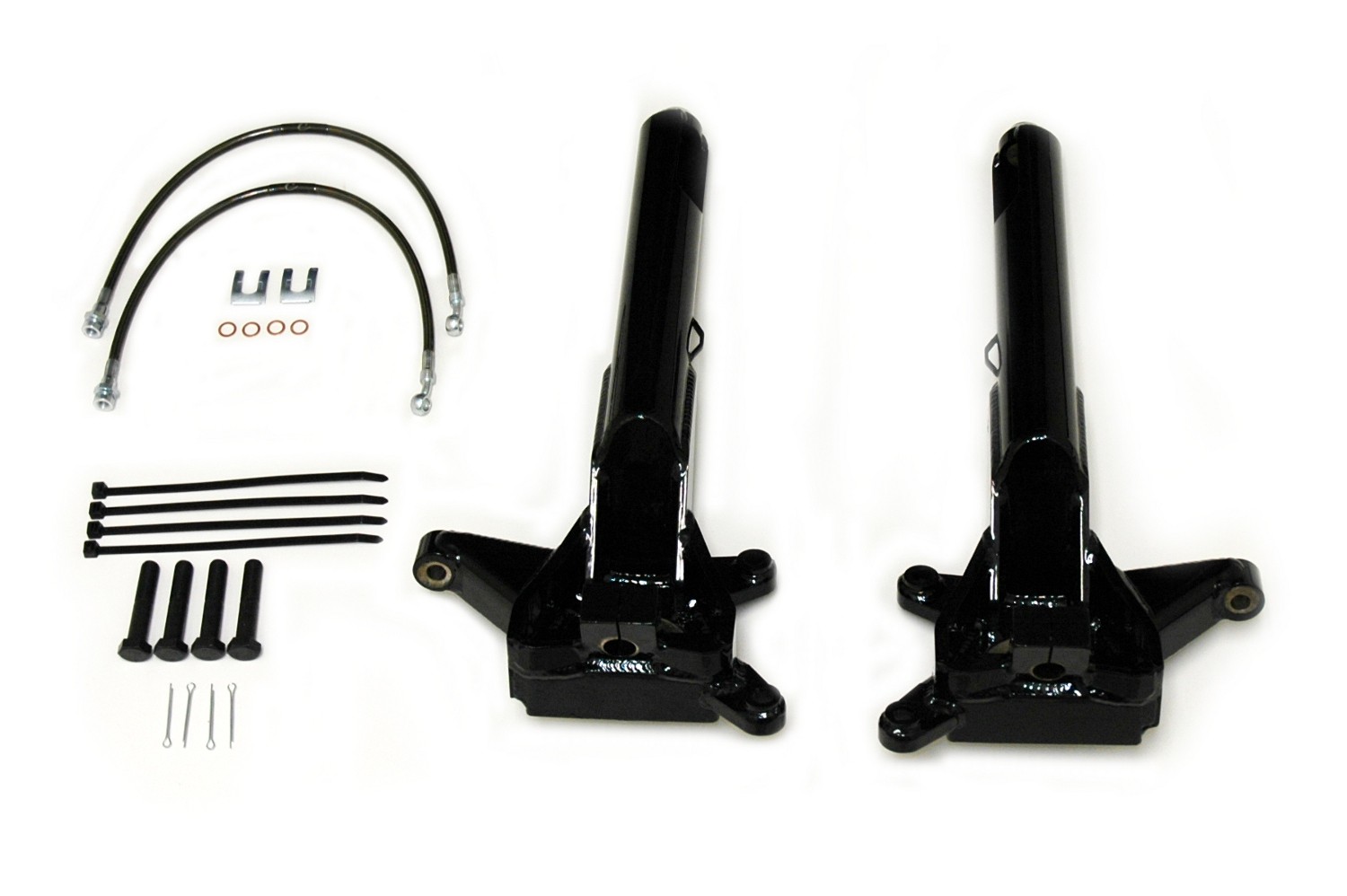

CSS-N1-1 Kit Features

STAINLESS STEEL BRAIDED FRONT BRAKE LINES
ALL PARTS COVERED IN A HIGH QUALITY GLOSS BLACK POWDER COAT FINISH
ABILITY TO RETURN TRUCK TO STOCK
SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT ¼” OR BETTER STEEL, CNC MACHINED BALL JOINT TAPERS, AND COMPLETELY MIG WELDED
FACTORY RIDE & HANDLING
DESIGNED TO FIT A 305/70/17 OR 33″ TIRES w/ 8″ WIDE WHEELS (4.75” MAX BACKSPACING)
AFFORDABLE PRICE ON QUALITY U.S. MADE FABRICATED LIFT SPINDLE KIT
EASY UPGRADE TO 6″ KITS

SUGGESTED WHEEL & TIRE SIZES

2004-2012 NISSAN TITAN 2WD

33” x12.5” OR SIMILAR ON 8” WIDE WHEELS
285 / 70 / 17 ON 8 OR 9” WIDE WHEELS (MINOR TRIMMING REQUIRED)
305 / 70 / 17 ON 8 OR 9” WIDE WHEELS (MINOR TRIMMING REQUIRED)
ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
MAXIMUM BACKSPACING IS 4.75”
